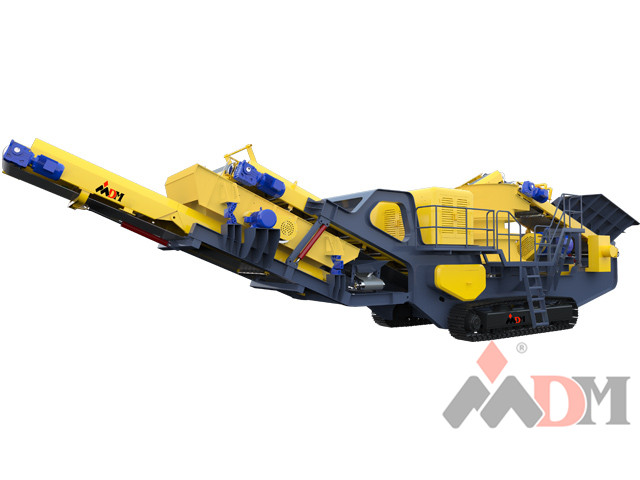

Mobile Cone Crusher Station(Track)

Feeder size:
Production capacity:
Dongmengcrawlermobileconecrushingstationadoptsoneofthemostwidelyusedandbest-sellingproductintheinternationalmarket:theDMseriessing...
 Dongmeng crawler mobile cone crushing station adopts one of the most widely used and best-selling product in the internationalmarket: the DM series single-cylinderhydraulic cone crusher. This type of cone crusher combines crushing technology, hydraulic technology, computer control technology and manufacturing technologyand many other latest research results in one. Provide various crushing chambers according to customer' s material processing requirements, so that it possesseshigh capacity, good product shape and low cost of wearing parts in any application. The series of mobile crushing stations can also work with various other typesof mobile screening stations to form a multi-stage production system, so that can

Model
DM-430
DM-440
Driving Motor Power (KW)
50
70
Total Weight (t)
35
46
Capacity (t/h)
70-180
100-350
Transportation Size L*W*H (m)
15*2.7*3.5
16*3.2*3.8
Working Motor Power (KW)
172

264

Equipment Configuration
Feeding System Model
B1000
B1000
L*w (mm)
9000*1000
9000*1000
Power (KW)
7.5
7.5
Cone Crusher Model
DC160
DC250
Max Feeding Size (mm)
190
215
Power (KW)
132
200




Curve crushing cavity: According to the material laminating and crushing principle and the cavity wear charateristics, the cavityis curve type design, whichcanensure the crusher's large capacity, high product quality and low wear cost;
The main crusher adopts automatic control system, it possesses automatic crushing process control, one-button automatic start-up and advanced fault diagnosisfunction, whichcan realize overload or tramp iron protection and automatic compensation for liner wear and other functions;
Adjustable eccentric distance: the eccentric bushing and eccentric sleeve of the main crusher is combined . Adjust eccentric eccentric bushing to easilysetanumber of eccentric distance for dfferent ores and industrial and mining requirements;
