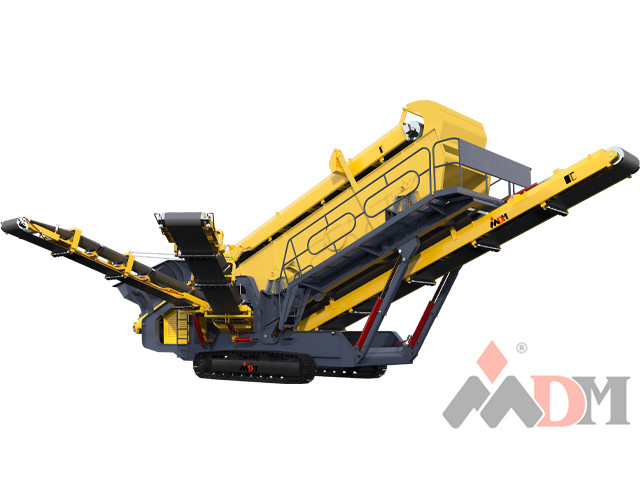

Mobile Screening Station(Track)

Dongmeng Series Mobile Screening Station is an ideal choice for many independent screening or multi-stage mobile c...


Dongmeng Series Mobile Screening Station is an ideal choice for many independent screening or multi-stage mobile crushing and screening processes because of its unique optimized dynamic design and intelligent process control system, which makes it strong, reliable and efficient screening capacity.
Adopts remote ntllient wireless remote control and slftracked walk to directly control upper and lower flatbed tailerwithout crane,so thatit canachievelong-distance transport, transfer operation;
The vibrating screen can be lifted by hydraulic device, whichis convenient for maintenance and replacement of screens, and is convenient for transportation;
The screening machine can screen up to 4 kinds (triple screens) of useful final products, and each finished material conveyor belt can be hydraulically folded torealize complete machine transportation;
Dynamic desin pssses hige-ficiency sreeing capacit, can be independenty operated or operated withmultiple stages of Dongmeng mobile series processflow products
Model
DM-1545B/C
DM-1860B/C
DM-2065B/C
Driving Motor Power (KW)
40
55
55
Total Weight (t)
20
24
26
Capacity (t/h)
80-180
120-350
180-450
Transportation Size L*W*H (m)
11.9*3.5*3.6
13.9*3.6*3.8
13.9*3.6*3.8
Working Motor Power (KW)
32/36
49/52.5
49/52.5
Equipment Configuration
Feeding System Model
B1000
B1000
B1000
L*w (mm)
9000*1000
11500*1000
11500*1000
Power (KW)
7.5
11
11
Screen Model
YK1545
YK1860
YK2065
Screen Box L*W(mm)
4500*1500
6000*1800
6500*2000
Decks
2(3)
2(3)
2(3)
Power (KW)
11(15)
18.5(22)
18.5(22)
