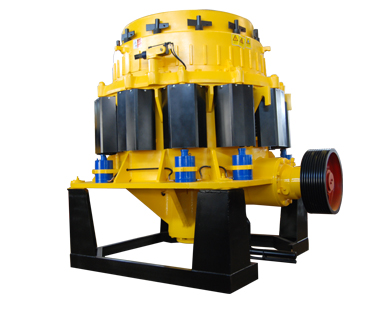

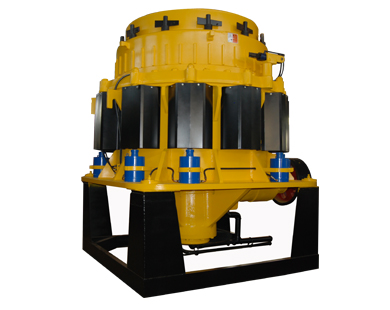

DMC Compound Cone crusher

Feeder size:13-369mm
Production capacity:27-1270t/h
Widely used in the Quarrying and Mining industries,

\

1.Widely used in the Quarrying and Mining industries,
2.the DMC Crusher is the result of utilizing part of the World famous Symons Gyratory design, enhancing the crushing chamber to result in more crushing and less grinding action, and introducing a hydraulically operated cavity clearance system to clear blockages.
3.The machines are available in model sizes of 1000mm, 1160mm, 1300mm, 1380mm, 1650mm, and 1950mm.
4.All models are available to be fitted with crushing cavities of Extra Fine, Fine, Medium, or Coarse.



Model
Chamber
Max.feed size(mm)
Min discharge opening(mm)
Motor Power
Capacity(t/h)
Weight
Closed side setting(mm)
6
10
13
16
19
22
25
38
51
64
DMC1000
C
160
13
110


80
100
135
175
175
235


10.8
M
115
10
110

65
75
90
120
150
150



10.8
F
80
8
110
52
62
72
78
115





10.51
EF
50
6
110
50
55
65
70
102





10.51
DMC1160
C
180
13
132


115








M
130
10
132

100
110








F
90
10
132

80
105








EF
60
6
132
60
74
105








DMC1300
C
200
16
185



150
180
200
230
310
390

22.3
M
150
13
185


115
140
160
190
210



22.3
F
102
10
200

90
115
145
160





22.3
EF
70
8
200

88
110
135
155





22.3
DMC1380
C
215
19
220




200
220
260
350
440

26.3
M
160
16
220



155
180
200
220



26.3
F
115
13
220


150
190
210
230




26.3
EF
76
8
220

122
148
185
200





26.3
DMC1650
C
235
22
250





265
310
420
525
580
36.5
M
175
19
250




215
240
265
320


36.5
F
130
13
250


180
210
235
255
275



36.5
EF
90
10
250

148
178
200
220





36.5
DMC1950
C
350
22
300





330
390
525
655
725
44.3
M
203
16
300



230
270
300
330



44.3
F
140
13
300


185
225
265
340




44.3
EF
95
10
300

180
220
260
335





44.3
Advantages and Characteristics
1.These machines feature a larger diameter shaft than a standard machine as well as an independent oil lubrication system, accounting for strong, durable, and reliable operation.
2.The efficient hydraulic jacking system allows for the quick clearance of any tramp iron or other blockage that may occur, thereby greatly reducing down time.
3.Change out times of the concave and mantle are quick, as there are no fillers or bonding agents involved.
