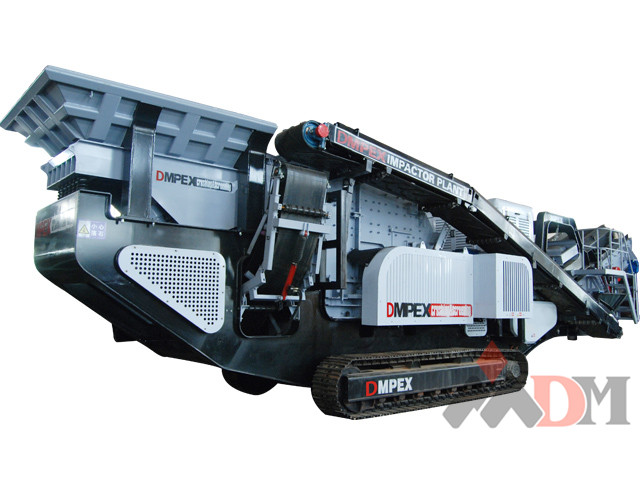

Mobile Impact Crushing Station(crawler type)

Dongmeng mobile impact crushing station adopts heavy rotorlarge-capacity crushing cavity, heavy impact plate, high w


Dongmeng mobile impact crushing station adopts heavy rotorlarge-capacity crushing cavity, heavy impact plate, high wear-resistance lly blow bar, hydraulicopeningdevice, etc. to realize greater crushing capacity and crushing ratio, stable performance,ow production cost and convenient operation and maintenance.Itcan break ore and rock with a compressive strength no more than 320 MPa. The crushed stone is with a cubic shape, less lneedle like shape stone and almostno internal cracks.
Super heawyduty rotor high waresistant mterial arge cushing avity, are eedin sze, sable product, high cpacity, Bood shape, arge crushing atoi。
Back frame of the crusher is opened by hydraulic device, it is easy to maintain;。
The side discharge belt can be disassembled;
Using ntelligent wireless remote control device, slf-track walking, single remote control to operate up and down ordinary flatbed trailer and to achieve fasttransition operations;
Provide iron remover or return system or eeding system according to customer's requirement.

 Model DMI100RS DMI130RS
 Feeding Equipment
 (t/h)Capacity(t/h) 250 400
(mm)Max feeding size(mm) 550 650
 (mm)Feeding Height(mm) 3800 3800
 (m3)Hopper Volume(m3) 3.6 9
 Feeding Belt Conveyor
 L×W(mm) 功率(kw)Motor(kw) 4000*1050 4.5*2 4100*1050 4.5*2
 Impact Crusher
 Model I1010 I1313
 Max Feeding Size(mm) 500 600
(mm)Feed opening (mm) 940*700 1060*930
 Motor(kw) 160 250
 Returning Belt Conveyor
 L×W(m) 3400*600 3360*650
 Motor(kw) 3 3
 Main Belt Conveyor
 L×W(m) 11800*1000 15300*1000
 Motor(kw) 11 15
 Vibrating Screen
 L×W(mm) 3500*1500 3800*1600
 Motor(kw) 3.06*2 3.06*2
 Final Product Belt Conveyor
 L×W(mm) 4800*1400 5700*1400
 Unloading Height(mm) 2850 3000
 Motor(kw) 7.5 7.5
 Transition Belt Conveyor
 L×W(mm)  Motor(kw) 2000*500 2.2 3600*500 3
 Returning Belt Conveyor
 L×W(mm)  Motor(kw) 7700*500 4 10300*500 7.5


 Whole Plant
 Driving Motor(kw) 115 115
 Total weight(t) 43 58
 Capacity(t/h) 80-220 180-360
 Size L×W×H(m) 13.5*3*3.6 16.3*3.5*3.8
 External Power(kw) 217.5 313.75
