Trommel screening machine

Feed Particle Size
≤500mm
Processing Capacity
≥90t/h
Machinery Weight
Subject to actual circumstances

Product Introduce
Advantages
Application & Case
Technical Parameters

Contact

Equipment Device

Engineered for municipal construction/demolition waste, renovation debris, and solid waste,optimized for screening aggregates, ores, sand, wood chips, and diverse waste types Eliminates screen blinding issues during viscous waste processing, enhancing sorting efficiency and operational reliability.

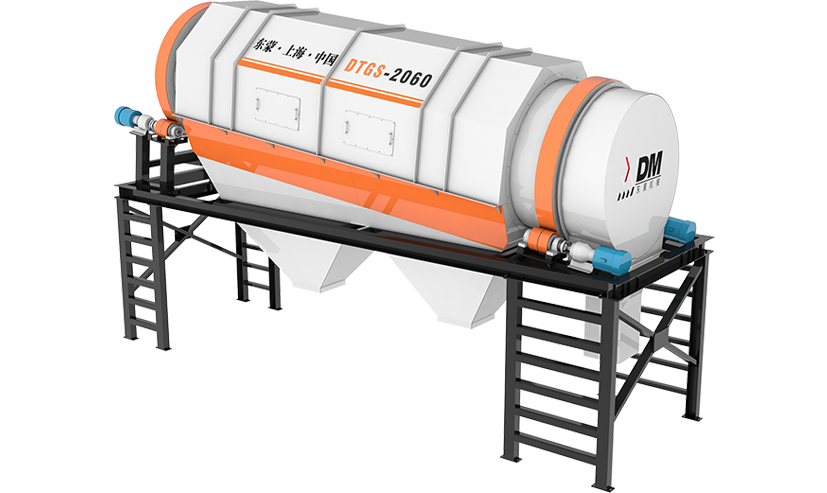

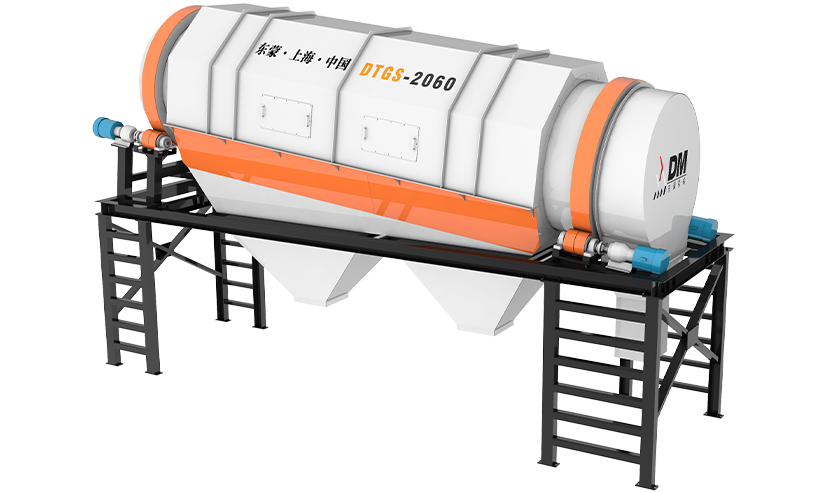

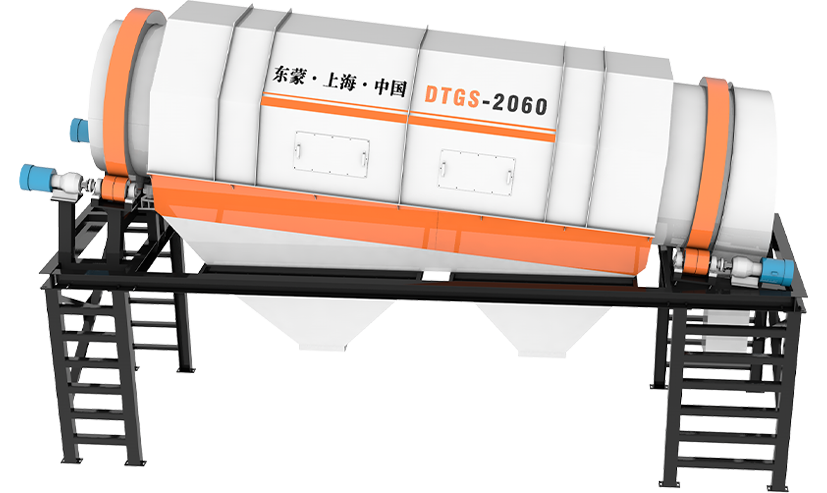

Performance Requirements: The drum screen box features a reinforced design to withstand the impact of large materials. The screen plates are arranged in segments, using either circular or square shapes. A dust cover is installed on the top of the drum screen, with an inspection hole above it for easy screen plate replacement. The drum screen uses a four-axis drive system with rubber drive wheels for shock absorption.

Advantages & Highlights

Versatile application scope

Enables large-scale modular designs with intuitive operation, shallow installation angles.
Compact spatial efficiency

Simplified process integration with fully sealed structures suppressing dust emissions
Energy-optimized drive system

Gear-reduced transmission ensures high efficiency with lower power consumption

Application & Project

A new type of forehead crusher that has been optimally designed and manufactured in terms of structure, material selection, process, assembly, etc.

Technical Parameters

Parameter	Specification
Maximum Feed Size	≤500mm
Processing Capacity	≥90t/h
Dimensions	Ø2000×8000mm
Installed Power	5.5kw × 4
Drive Method	Gearbox drive, gearbox ratio 19:1
Screen Size	12mm (mixed slag), 80mm (preset)
Drive Motor Brand / Protection Rating	Leilong / IP55
