Egative pressure air separator with frequency conversion

Feed Particle Size
≤300mm
Processing Capacity
Subject to actual circumstances
Machinery Weight
Subject to actual circumstances

Product Introduce
Advantages
Application & Case
Technical Parameters

Contact

Equipment Device

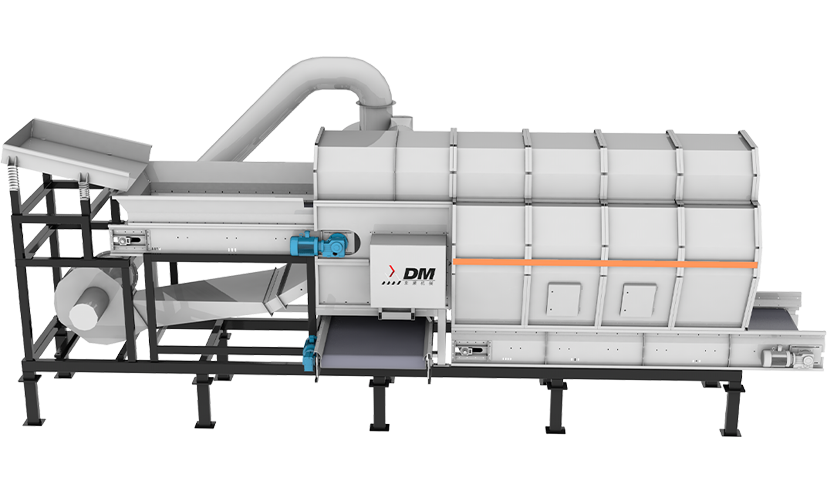

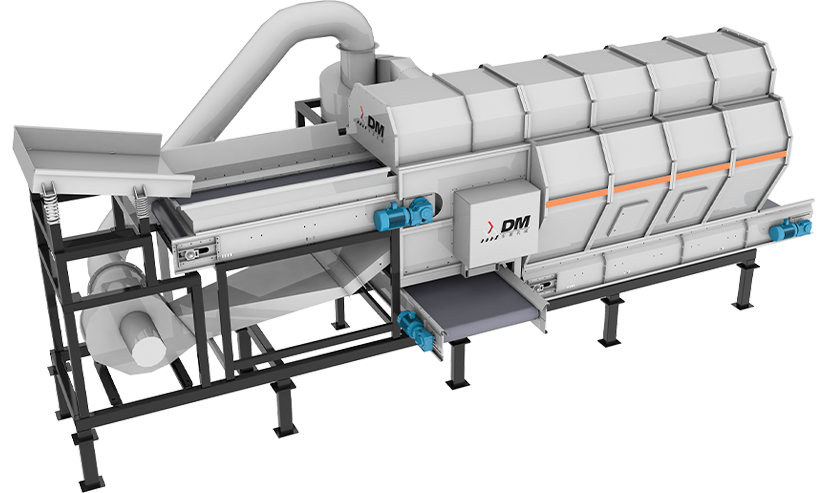

Acritical separation unit in municipal solid waste processing, effectively isolating light weight materials (plastics,foam,paperscraps)from dense fractions to ensure purity of heavy components. Operates on Aerodynamic principles that segregate materials by density differential.

Application-Construction waste disposal solution　

Construction waste

Defined as residual soils, excavated materials, demolition debris, slurry, and other waste

Substances generated during construction, demolition, or renovation activities by construction units or individuals on buildings, structures, pipelines, and related infrastructure.

Solution description:

Our system utilizes hydraulic jaw crushers, large-diameter impact crushers, high frequency composite screens, and lightweight material sorting equipment to execute a streamlined conversion process.

Advantages & Highlights

Aerodynamics

Aerodynamic principles for separating light and heavy substances.
Variable Frequency Control

Utilizing variable frequency control to accommodate the sorting of materials with different properties.
Modular

Features a modular design, meets environmental standards, and offers low maintenance costs.
Plug and Play

Integrated design with smart controls, plug-and-play installation at the site.

Application & Project

A new type of forehead crusher that has been optimally designed and manufactured in terms of structure, material selection, process, assembly, etc.

Technical Parameters

Equipment Name	Parameter Item	Parameter Content
Frequency conversion negative pressure air separator DMFX1200	Fan Installed Power & Belt Conveyor/Roller Power	Fan: 30kw; Belt conveyor & roller: 18kw
	Maximum Feed Size	≤300mm
	Speed Regulation Method	Fan, feed belt conveyor and roller adopt frequency conversion
	Drive Motor Brand	Leibo or domestic equivalent grade
	Reducer Brand	Guomao, Boneng or domestic equivalent grade
	Maximum Air Volume & Total Pressure	Max air volume: 32746m³/h; Total pressure: 2063Pa
