Industrial high-frequency composite screen

Feed Particle Size
≤400mm
Processing Capacity
50-200t/h
Machinery Weight
Subject to actual circumstances

Equipment Device

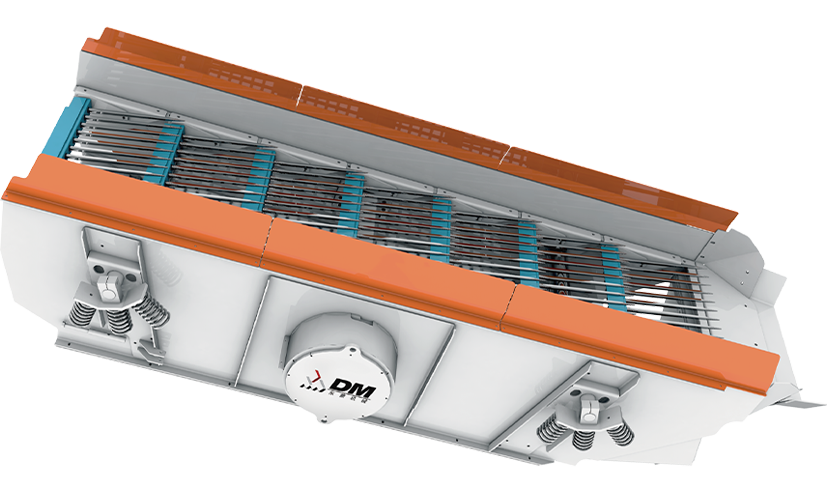

The high-frequency composite screen is a general-purpose screening equipment with a special screen surface. Its biggest features are high screening efficiency, relatively large throughput, and resistance to clogging. The high-frequency composite screen uses a blind plate plus bar screen surface. This series of screening machines uses a vibrating motor as the excitation source, has a simple structure, is easy to maintain, has a large output, long service life, and is robust and durable.

Application-Construction waste disposal solution

construction waste

Defined as residual soils, excavated materials, demolition debris, slurry, and other waste

substances generated during construction, demolition, or renovation activities by construction units or individuals on buildings, structures, pipelines, and related infrastructure.

Solution description:

Our system utilizes hydraulic jaw crushers, large-diameter impact crushers, high frequency composite screens, and lightweight material sorting equipment to execute a streamlined conversion process.

Technical Parameters

Equipment Name	Parameter Item	Parameter Content
The high-frequency composite screen DMFS1548-3	Maximum Feed Size	≤400mm
	Rated Processing Capacity	50-200t/h
	Screen Surface Dimension	1500*4800mm
	Driving Method	Motor Driven
	Relaxation Structure	Mechanical Locking
	Drive Motor Brand	Leibo or domestic equivalent grade
	Number of Screen Layers	3
	Screen Mesh Material	High Manganese Steel Wire Woven Screen Mesh
	Equipment Installed Power	15kw
	Drive Motor Brand / Protection Class	Leibo or domestic equivalent grade; IP55
